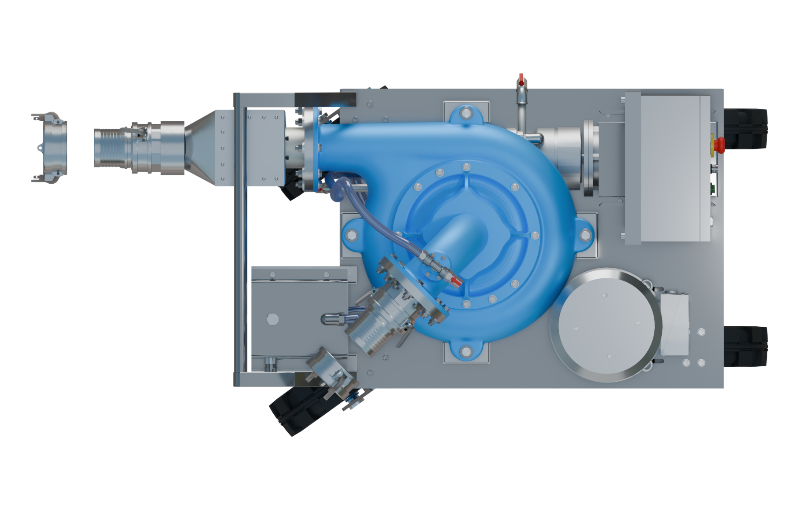

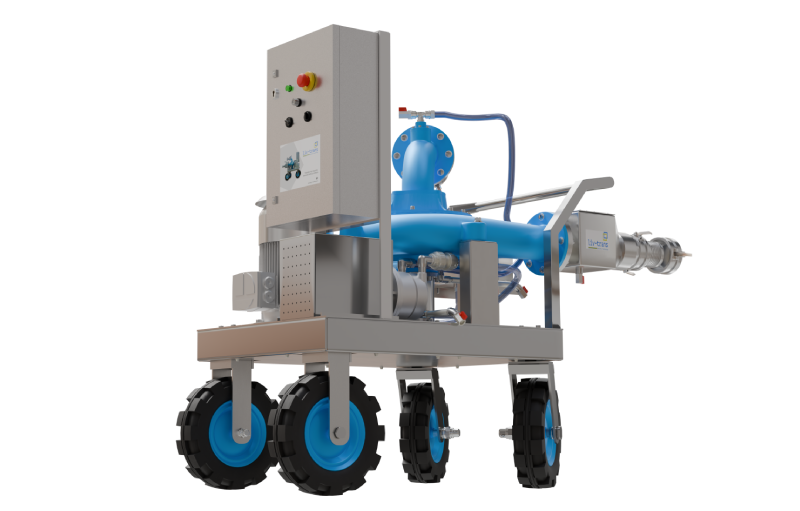

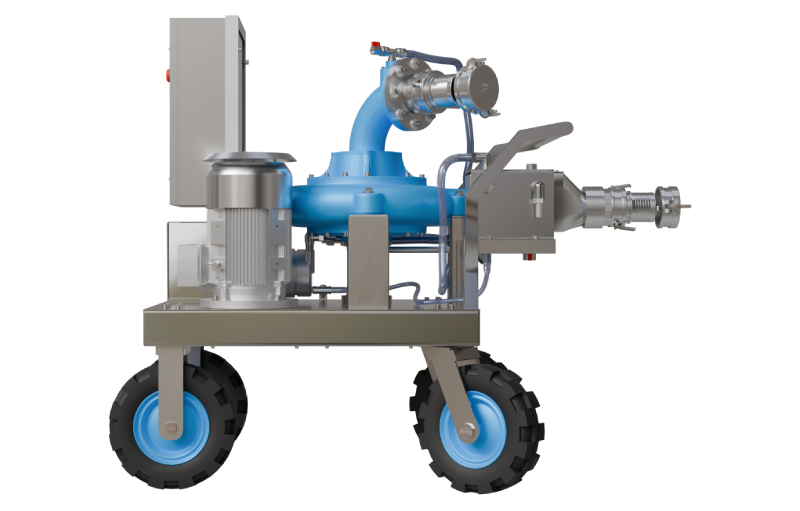

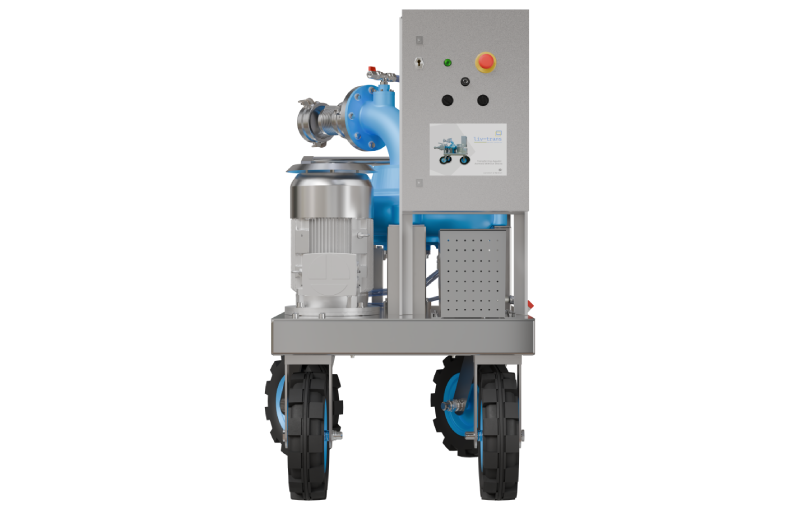

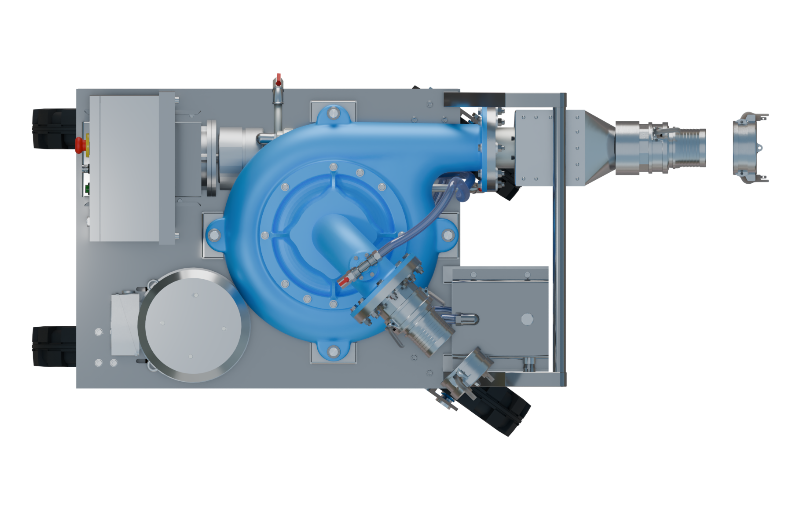

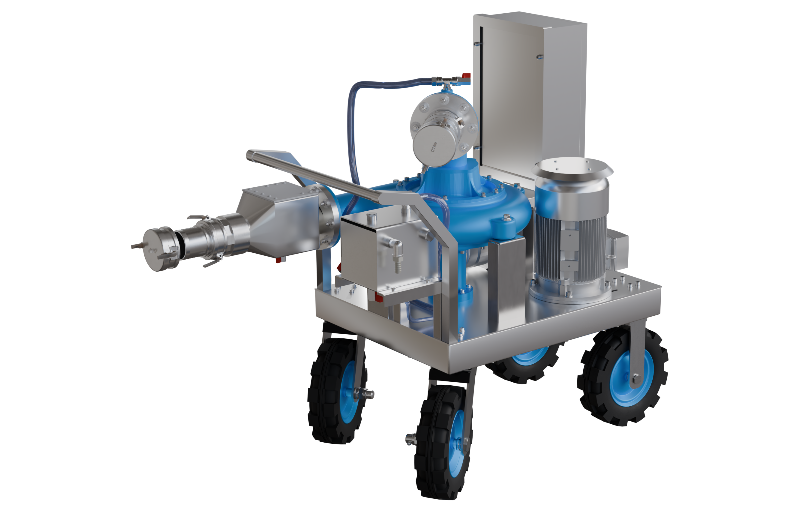

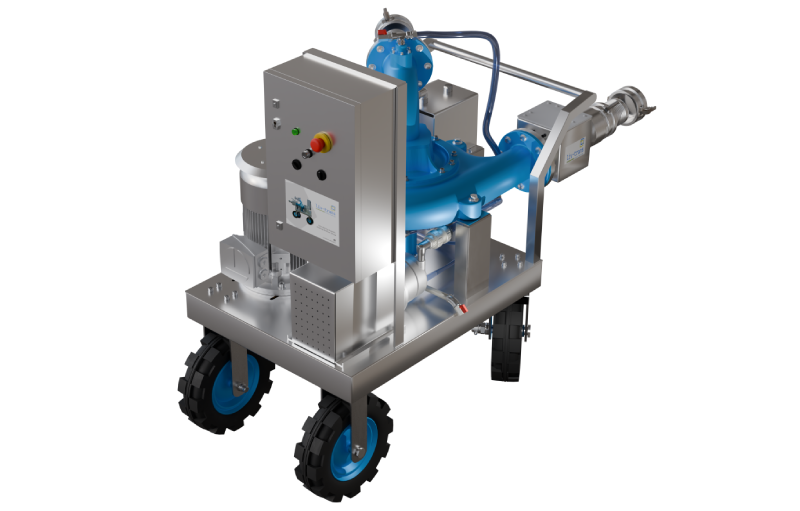

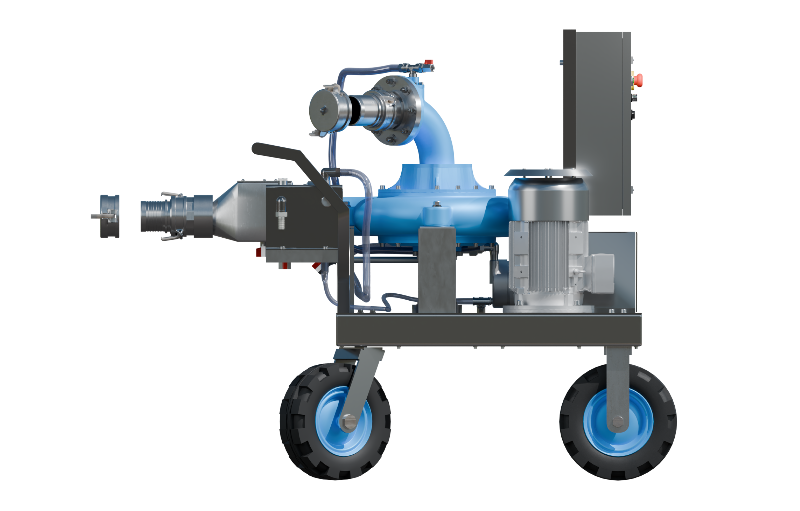

Fish, Shrimp & Aquatic Animals Transfer Pump for Inland and Marine Use
at Mydsun's workshop, the journey towards innovation began with a deep concern for aquatic life. Watching manual transfer processes lead to undue stress, injuries, and high mortality rates for delicate aquatic animals, we knew there had to be a better way. This challenge sparked our mission to create a solution that would not only preserve aquatic life but also enhance operational efficiency and profitability.

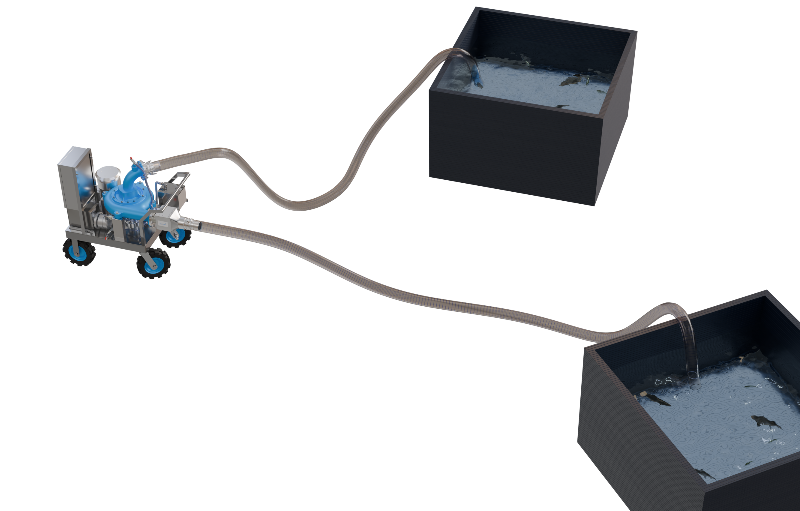

From this vision, Liv-trans was born. It is not just a pump; it’s a groundbreaking innovation designed to safely and efficiently transfer aquatic animals of all sizes—whether inland or marine—while minimizing stress and ensuring their wellbeing.
Engineered with cutting-edge technology and export-quality materials, the Liv-trans pump automates the transfer process, replacing labor-intensive and injury-prone methods. It streamlines operations, accelerates the packing process, and ensures the safe handling of live fish, shrimp, and other aquatic life. By reducing mortality rates and maintaining the quality and health of aquatic animals, Liv-trans represents a leap forward in sustainable aquaculture.
Liv-trans Pumps boast an advanced impeller design, cast, precision-balanced, and hand-polished. This ensures safe and efficient transfer of fish and shrimp, prioritizing their gentle handling and welfare
The 7.5 HP electric drive with variable speed control allows for precise adjustment of the pump’s performance, adapting to different transfer needs
A 2 HP prime pump assists in initiating the transfer process, ensuring smooth and reliable operation without the need for manual intervention
Equipped with 4-inch wheels, the Liv-trans can be easily moved from one location to another, providing flexibility in various operational environments.
tested to transfer fishes, shrimps and other aquatic animals upto 3 km distance, with the ability to operate in series to extend this range further.
tested to transfer fishes, shrimps and other aquatic animals upto 3 km distance, with the ability to operate in series to extend this range further.
| Pump Size (inch) | 4 |
| Inlet/outlet size (mm) | 100 |
| Shrimp/Fish Pump Drive | 7.5 HP (5.5 KW) |
| Prime Pump Drive | 2 HP (1.5 KW) |
| Variable Speed Drive (VFD) | Included |
| Self Priming | Yes |
| Wheel size (inch) | 16 |
| Material | 316 Stainless Steel Grade |
| Approx. Weight (kg) | 460 |
| Pump Output Maximum (LPM) | 3000 |
| Maximum Avg. Shrimp/Fish Size (Based on In/Outlet) (gram) | 250 |
| Transfer distance maximum (meter) | 2500 |
| Maximum cumulative head (meter) | 12 |
| Maximum suction head (meter) | 3.5 |
| Dimension -LXWXH (cm) | 177.5 X 80 X 145 |
Our pumps are in constant use, and currently, we have one at each of our facilities. The Liv-Trans Pump is incredibly gentle on shrimp (post larves) and can be easily managed with its unique impeller and panel design, allowing a single person to efficiently handle the sorting and transfer of shrimp (post larves). We are very satisfied with our decision to use these pumps as they meet our needs and support our production perfectly.
Our pumps are in constant use, and currently, we have one at each of our facilities. The Liv-Trans Pump is incredibly gentle on shrimp (post larves) and can be easily managed with its unique impeller and panel design, allowing a single person to efficiently handle the sorting and transfer of shrimp (post larves). We are very satisfied with our decision to use these pumps as they meet our needs and support our production perfectly.
Our pumps are in constant use, and currently, we have one at each of our facilities. The Liv-Trans Pump is incredibly gentle on shrimp (post larves) and can be easily managed with its unique impeller and panel design, allowing a single person to efficiently handle the sorting and transfer of shrimp (post larves). We are very satisfied with our decision to use these pumps as they meet our needs and support our production perfectly.
with Liv-trans !
please email us and, our technical sale team will get back to you with a quote suited to your needs.
